カテゴリー: 3D

アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js)v4

Posted on 12月 6 by Takaaki Naganoya

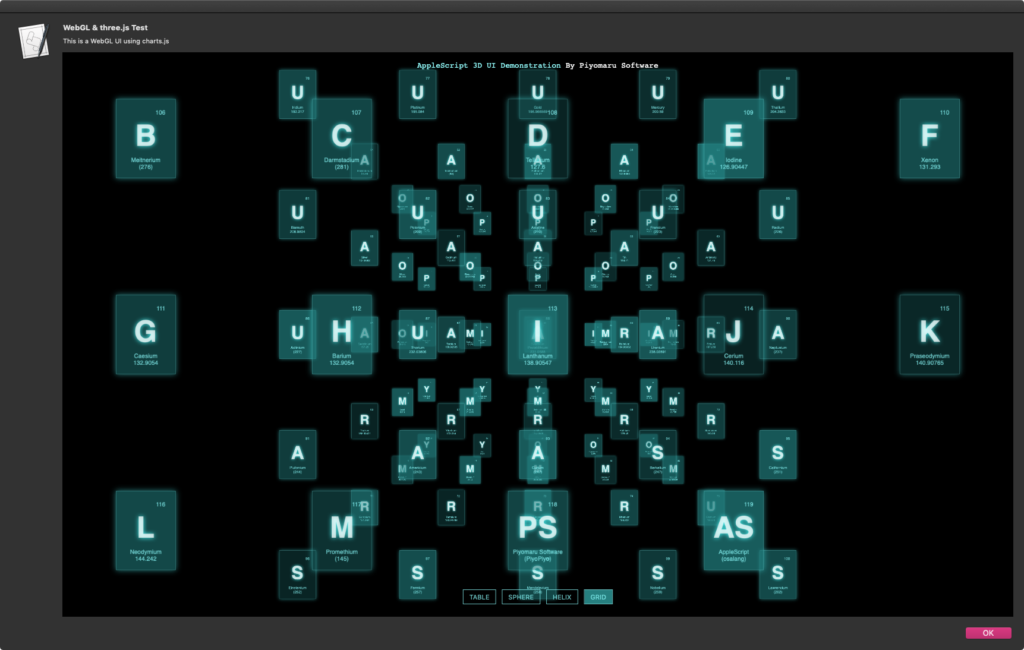

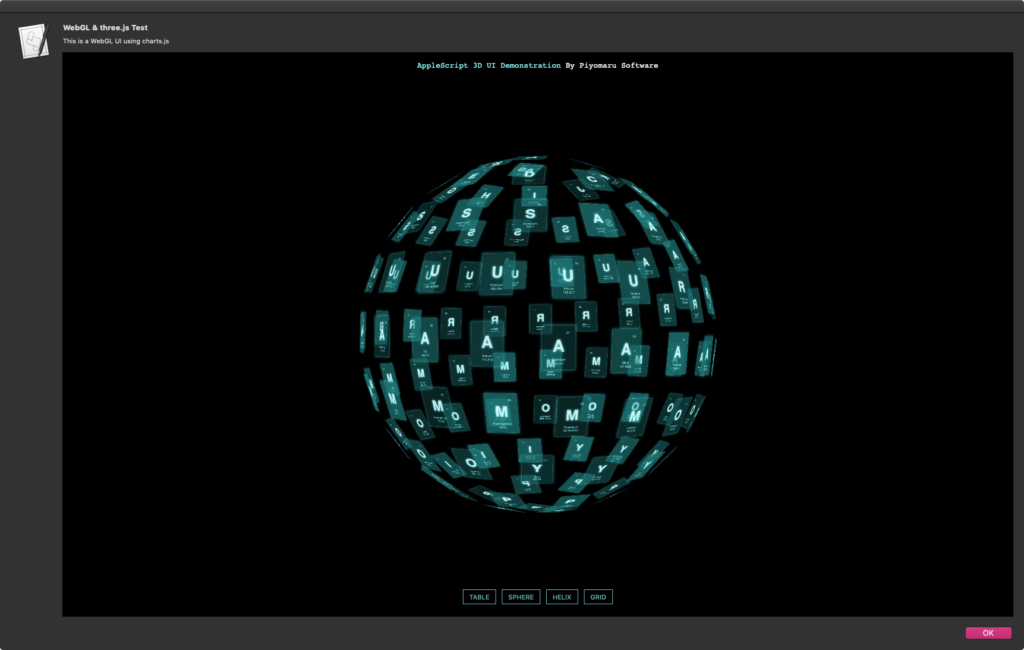

アラートダイアログ上にWkWebViewを作成して、さまざまなグラフや3Dアニメーションを表示してきた「箱庭ダイアログ」の1つの到達点、「periodictable」(元素周期表)選択UIの表示デモAppleScriptです。

–> Download Script Bundle

実行は掲載リストではなく上記のリンクからダウンロードしたAppleScriptバンドルを、かならずスクリプトエディタでオープンして(Script Debugger不可)、Controlキーを押しながらスクリプトエディタの「スクリプト」メニューから「フォアグラウンドで実行」コマンドで実行してください。

「フォアグラウンド」はApple(の外注のローカライズ業者による)ローカライズ内容が間違っていて、実際には「メインスレッドで実行」が正しいのですが、まあいいです。

以前に掲載したバージョン(v3)は、掲載後しばらくはそのまま動いていることが確認されたのですが、その後のCDN上のJavaScriptライブラリのアップデートにともない、動作しなくなっていました。本v4はその点を解決したもので、技術的により進化したというよりも、「勝手に動かなくなる点に対処した」程度のものとお考えください。

periodictableのUser Interface自体、目を惹くものであり、とても楽しいものです。ただ、真剣にその内容を解析し、汎用的に利用できるかどうかを検討してみると、おおよそ120個程度の要素に対して、重みづけを与えずに自由選択するような用途でないと実用性が得られないことがわかりました。たいてい、情報には重要度などの重みがありますが、本User Interfaceはそれがあると邪魔な感じです。

また、少ないデータ……2個や3個の要素から選択するのでは、用をなしません。用途が限定されすぎているというべきなのか、この用途にしか合わないというべきなのか。

JavaScriptとAppleScriptの間での選択項目のやり取りを行う手段についても、edama2氏が実際に稼働するデモを作ったのを見せてもらい、たしかにそうした処理ができることを確認しています。

それでも、いまひとつ実用性がないので、あくまで本プログラムは「デモ用」と割り切っています。

「CDN上のJavaScriptライブラリがアップデートして動かなくなる問題」についても、1つの解決策が見えてきました。ローカルにJavaScriptライブラリを配置して読み込んで使えばいいというものです。実際に、本ScriptバンドルのResourceフォルダ内にそれらのファイルが入っています。

これで勝手にアップデートされないため、放っておくと動かなくなるといった問題への解決策となっています。ただ、その一方でメイン処理を呼び出すさいに強制的なメインスレッド実行を行わせても、実行できないという謎の現象が発生。これについては、問題解決の手段自体はあるはずです(たぶん)。

AppleScript名:アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js)v4.scptd
—
–  Created by: Takaaki Naganoya
–  Created on: 2020/06/13
–  Modified on: 2023/03/07
—
–  Copyright © 2020-2023 Piyomaru Software, All Rights Reserved
—
use AppleScript version "2.7"
use framework "Foundation"
use framework "AppKit"
use framework "WebKit"
use scripting additions

property |NSURL| : a reference to current application’s |NSURL|
property NSAlert : a reference to current application’s NSAlert
property NSString : a reference to current application’s NSString
property NSButton : a reference to current application’s NSButton
property WKWebView : a reference to current application’s WKWebView
property WKUserScript : a reference to current application’s WKUserScript
property NSURLRequest : a reference to current application’s NSURLRequest
property NSRunningApplication : a reference to current application’s NSRunningApplication
property NSUTF8StringEncoding : a reference to current application’s NSUTF8StringEncoding
property WKUserContentController : a reference to current application’s WKUserContentController
property WKWebViewConfiguration : a reference to current application’s WKWebViewConfiguration
property WKUserScriptInjectionTimeAtDocumentEnd : a reference to current application’s WKUserScriptInjectionTimeAtDocumentEnd

property returnCode : 0

on run
  –https://www.cresco.co.jp/blog/entry/7427/

— By sgi-chang @ UX Design Center

set myStr to (POSIX path of (path to me)) & "/Contents/Resources/index.html"


set paramObj to {myMessage:"WebGL & three.js Test", mySubMessage:"This is a WebGL UI using three.js", htmlPath:myStr}

my browseFileWebContents:paramObj –for debug

–my performSelectorOnMainThread:"browseFileWebContents:" withObject:(paramObj) waitUntilDone:true
end run

on browseFileWebContents:paramObj
  set aMainMes to myMessage of paramObj

set aSubMes to mySubMessage of paramObj

set htmlPathStr to (htmlPath of paramObj)


set aWidth to 1600

set aHeight to 900


–WebViewをつくる

set aConf to WKWebViewConfiguration’s alloc()’s init()


–指定HTML内のJavaScriptをFetch

tell current application
    set htmlString to read ((POSIX file htmlPathStr) as alias) as «class utf8»
  end tell

set jsSource to pickUpFromToStr(htmlString, "<script src", "</script>") of me


set userScript to WKUserScript’s alloc()’s initWithSource:jsSource injectionTime:(WKUserScriptInjectionTimeAtDocumentEnd) forMainFrameOnly:true

set userContentController to WKUserContentController’s alloc()’s init()

userContentController’s addUserScript:(userScript)

aConf’s setUserContentController:userContentController


set aWebView to WKWebView’s alloc()’s initWithFrame:(current application’s NSMakeRect(0, 0, aWidth, aHeight)) configuration:aConf

aWebView’s setNavigationDelegate:me

aWebView’s setUIDelegate:me

aWebView’s setTranslatesAutoresizingMaskIntoConstraints:true

using terms from scripting additions
    set bURL to |NSURL|’s fileURLWithPath:(POSIX path of (path to me))
  end using terms from

set htmlURL to current application’s |NSURL|’s fileURLWithPath:htmlPathStr

aWebView’s loadFileURL:(htmlURL) allowingReadAccessToURL:(bURL)


— set up alert

set theAlert to NSAlert’s alloc()’s init()

tell theAlert
    its setMessageText:aMainMes

its setInformativeText:aSubMes

its addButtonWithTitle:"OK"

–its addButtonWithTitle:"Cancel"

its setAccessoryView:aWebView


set myWindow to its |window|
  end tell


— show alert in modal loop

NSRunningApplication’s currentApplication()’s activateWithOptions:0

my performSelectorOnMainThread:"doModal:" withObject:(theAlert) waitUntilDone:true


–Stop Web View Action

set bURL to |NSURL|’s URLWithString:"about:blank"

set bReq to NSURLRequest’s requestWithURL:bURL

aWebView’s loadRequest:bReq


if (my returnCode as number) = 1001 then error number -128
end browseFileWebContents:

on doModal:aParam
  set (my returnCode) to (aParam’s runModal()) as number
end doModal:

on viewDidLoad:aNotification
  return true
end viewDidLoad:

on fetchJSSourceString(aURL)
  set jsURL to |NSURL|’s URLWithString:aURL

set jsSourceString to NSString’s stringWithContentsOfURL:jsURL encoding:(NSUTF8StringEncoding) |error|:(missing value)

return jsSourceString
end fetchJSSourceString

on pickUpFromToStr(aStr as string, s1Str as string, s2Str as string)
  set a1Offset to offset of s1Str in aStr

if a1Offset = 0 then return false

set bStr to text (a1Offset + (length of s1Str)) thru -1 of aStr

set a2Offset to offset of s2Str in bStr

if a2Offset = 0 then return false

set cStr to text 1 thru (a2Offset – (length of s2Str)) of bStr

return cStr as string
end pickUpFromToStr

–リストを任意のデリミタ付きでテキストに
on retArrowText(aList, aDelim)
  set aText to ""

set curDelim to AppleScript’s text item delimiters

set AppleScript’s text item delimiters to aDelim

set aText to aList as text

set AppleScript’s text item delimiters to curDelim

return aText
end retArrowText

on array2DToJSONArray(aList)
  set anArray to current application’s NSMutableArray’s arrayWithArray:aList

set jsonData to current application’s NSJSONSerialization’s dataWithJSONObject:anArray options:(0 as integer) |error|:(missing value) –0 is

set resString to current application’s NSString’s alloc()’s initWithData:jsonData encoding:(current application’s NSUTF8StringEncoding)

return resString
end array2DToJSONArray

on parseByDelim(aData, aDelim)
  set curDelim to AppleScript’s text item delimiters

set AppleScript’s text item delimiters to aDelim

set dList to text items of aData

set AppleScript’s text item delimiters to curDelim

return dList
end parseByDelim

★Click Here to Open This Script

Posted in 3D Animation Web Contents Control | Tagged 13.0savvy 14.0savvy 15.0savvy | Leave a comment

メキシカンハットの描画

Posted on 6月 28 by Takaaki Naganoya

X(旧称Twitter)の一部で流行っている、むかーーしむかしのBASIC処理サンプルの1つ、メキシカンハット型グラフの描画AppleScriptです。

–> Download full script bundle with libraries

自分もChipmunk BASIC用に移植して投稿していたのですが、AppleScriptにフル書き換えするとどんなもんだと思い、書いてみました。

関数演算ライブラリは、自作のcalcLibASがあるので、これを使い、画像のダイアログ表示用ライブラリを使って画面表示。

AppleScriptでも1秒ぐらいで処理が終了してしまいますが、黒地に緑で描画すると、謎の「味」があります。

AppleScript名:メキシカンハット v2.scptd
— Created 2024-06-28 by Takaaki Naganoya
use AppleScript version "2.5"
use scripting additions
use framework "Foundation"
use framework "AppKit"
use mLib : script "calcLibAS"
use imgDispLib : script "imageDisplayLib"

property NSColor : a reference to current application’s NSColor
property NSString : a reference to current application’s NSString
property NSImage : a reference to current application’s NSImage
property NSScreen : a reference to current application’s NSScreen
property NSBezierPath : a reference to current application’s NSBezierPath
property NSBitmapImageRep : a reference to current application’s NSBitmapImageRep

–パラメータから下地になる画像を作成する
set aSize to current application’s NSMakeSize(300, 300)
set anImage to NSImage’s alloc()’s initWithSize:aSize
set backlColor to (NSColor’s colorWithCalibratedRed:0.0 green:0.0 blue:0.0 alpha:1.0)
set anImage to drawImageWithColorFill(anImage, {0, 0, 300, 300}, backlColor) of me

–描画色
set drawColor to (NSColor’s colorWithCalibratedRed:0.0 green:1.0 blue:0.0 alpha:1.0)

–Mexican Hat
set D to {}
set rDnum to pi / 180

repeat 256 times
  set end of D to 100
end repeat

repeat with y from -180 to 180 by 6
  repeat with x from -180 to 180 by 4
    set u to 120 + (x / 3) – (y / 6)

if u < 0 or u ≥ 240 then
      —
    else
      set r to rDnum * (sqrt ((x ^ 2) + (y ^ 2)))

set z to 100 * (cos (r – 30)) * (cos (3 * r))

set v to 40 – y / 6 – z / 2


if (item u of D) > v then
        set anImage to psetOnImage(anImage, {u, 256 – v}, drawColor) of me

copy v to (item u of D)
      end if
    end if
  end repeat
end repeat

–結果表示
dispImage(anImage, "Mexican Hat") of imgDispLib

on psetOnImage(anImage, posDat, fillColor)
  set retinaF to (NSScreen’s mainScreen()’s backingScaleFactor()) as real

–>  2.0 (Retina) / 1.0 (Non Retina)


anImage’s lockFocus() –描画開始


set origX to (item 1 of posDat) / retinaF

set origY to (item 2 of posDat) / retinaF

set sizeX to (1) / retinaF

set sizeY to (1) / retinaF


set theRect to {{x:origX, y:origY}, {width:sizeX, height:sizeY}}


set theNSBezierPath to NSBezierPath’s bezierPath
  (
theNSBezierPath’s appendBezierPathWithRect:theRect)


fillColor’s |set|() –色設定

theNSBezierPath’s fill() –ぬりつぶし


anImage’s unlockFocus() –描画ここまで


return anImage –returns NSImage
end psetOnImage

on drawImageWithColorFill(anImage, drawList, fillColor)
  set retinaF to (NSScreen’s mainScreen()’s backingScaleFactor()) as real

–>  2.0 (Retina) / 1.0 (Non Retina)


anImage’s lockFocus() –描画開始


set origX to (item 1 of drawList) / retinaF

set origY to (item 2 of drawList) / retinaF

set sizeX to (item 3 of drawList) / retinaF

set sizeY to (item 4 of drawList) / retinaF


set theRect to {{x:origX, y:origY}, {width:sizeX, height:sizeY}}


set theNSBezierPath to NSBezierPath’s bezierPath
  (
theNSBezierPath’s appendBezierPathWithRect:theRect)


fillColor’s |set|() –色設定

theNSBezierPath’s fill() –ぬりつぶし


anImage’s unlockFocus() –描画ここまで


return anImage –returns NSImage
end drawImageWithColorFill

★Click Here to Open This Script

Posted in 3D dialog Image | Tagged 13.0savvy 14.0savvy 15.0savvy | Leave a comment

アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js)v3

Posted on 3月 7, 2023 by Takaaki Naganoya

アラートダイアログ上にWkWebViewを作成して、さまざまなグラフや3Dアニメーションを表示してきた「箱庭ダイアログ」の1つの到達点、「periodictable」(元素周期表)選択UIの表示デモAppleScriptです。

このデモ、macOS 10.14あたりまでは動いていたのですが、その後のmacOSのアップデートにより、表示されなくなっておりました。

いろいろ調べたところ、macOSの開発者もiOSの開発者も揃いも揃って「表示できない」と言っているのを見て、逆に何か解決策がありそうな気がしてきました。

ローカルに保存しておいた1枚ものの表示用HTML(2020/05に作成したもの)は、当時のSafariで表示できており、WkWebViewでも表示できていました。

現在、この1枚もののHTMLはSafariでもWkWebViewでも表示できないようになっています。
その一方で、three.jsのWebサイトに掲載されているperiodictableのサンプルは現行のSafariで表示でき、操作も行えます。

当初は、これを「SafariとWkWebViewの差」だと思って、WkWebViewをカスタマイズしまくらないとSafariと同等の表示が行えないのではないか? と考えていました。ただ、探しても探しても答えが見つからず、この方向で情報収集を行っても「無駄」に思えてきました。

そこでにわかに浮上してきたのが、「periodictable」や「three.js」自体がアップデートされている説、です。

WebKit(WkWebView)側のアップデート、およびCDN上のJavaScriptのライブラリのアップデートの相互作用によって表示できなくなったのではないかと、調査の方向を変えてみました。

当時のサンプルHTMLと現在のサンプルHTMLのdiffをとって、読み込むCDN上のライブラリを変更したり、追加することで現行OS上のWkWebView上でも動作するようになりました。

つまり、文字列として与えているHTMLの部分のみ変更しただけで、AppleScript部分とかWkWebViewまわりは一切手をつけていません。わかってしまえば、「なーんだ」という内容ですが、これにはなかなか対応できませんでした。

あとは、クリックした項目のURLイベントをAppleScript側で受信できればなおよいのですが、、、アプリケーションとして独立したものに変更して、AppleScript用語辞書を介して「display periodictable」みたいなコマンドでAppleScript側と値をやりとりするのがよいのかもしれません。

AppleScript名:アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js)v3.scptd
—
–  Created by: Takaaki Naganoya
–  Created on: 2020/06/13
–  Modified on: 2023/03/07
—
–  Copyright © 2020-2023 Piyomaru Software, All Rights Reserved
—
use AppleScript version "2.7"
use framework "Foundation"
use framework "AppKit"
use framework "WebKit"
use scripting additions

property |NSURL| : a reference to current application’s |NSURL|
property NSAlert : a reference to current application’s NSAlert
property NSString : a reference to current application’s NSString
property NSButton : a reference to current application’s NSButton
property WKWebView : a reference to current application’s WKWebView
property WKUserScript : a reference to current application’s WKUserScript
property NSURLRequest : a reference to current application’s NSURLRequest
property NSRunningApplication : a reference to current application’s NSRunningApplication
property NSUTF8StringEncoding : a reference to current application’s NSUTF8StringEncoding
property WKUserContentController : a reference to current application’s WKUserContentController
property WKWebViewConfiguration : a reference to current application’s WKWebViewConfiguration
property WKUserScriptInjectionTimeAtDocumentEnd : a reference to current application’s WKUserScriptInjectionTimeAtDocumentEnd

property returnCode : 0

–https://www.cresco.co.jp/blog/entry/7427/
— By sgi-chang @ UX Design Center
set myStr to "<!DOCTYPE html>
<html>

<head>
<title>three.js css3d – cresco xmas inspired by periodic table</title>
<meta charset=\"utf-8\">
<meta name=\"viewport\" content=\"width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0\">
<link type=\"text/css\" rel=\"stylesheet\" href=\"https://threejs.org/examples/main.css\">
<style>
a {
color: #8ff;
}

#menu {
position: absolute;
bottom: 20px;
width: 100%;
text-align: center;
}

.element {
width: 120px;
height: 160px;
box-shadow: 0px 0px 12px rgba(0, 255, 255, 0.5);
border: 1px solid rgba(127, 255, 255, 0.25);
font-family: Helvetica, sans-serif;
text-align: center;
line-height: normal;
cursor: default;
}

.element:hover {
box-shadow: 0px 0px 12px rgba(0, 255, 255, 0.75);
border: 1px solid rgba(127, 255, 255, 0.75);
}

.element .number {
position: absolute;
top: 20px;
right: 20px;
font-size: 12px;
color: rgba(127, 255, 255, 0.75);
}

.element .symbol {
position: absolute;
top: 40px;
left: 0px;
right: 0px;
font-size: 60px;
font-weight: bold;
color: rgba(255, 255, 255, 0.75);
text-shadow: 0 0 10px rgba(0, 255, 255, 0.95);
}

.element .details {
position: absolute;
bottom: 15px;
left: 0px;
right: 0px;
font-size: 12px;
color: rgba(127, 255, 255, 0.75);
}

button {
color: rgba(127, 255, 255, 0.75);
background: transparent;
outline: 1px solid rgba(127, 255, 255, 0.75);
border: 0px;
padding: 5px 10px;
cursor: pointer;
}

button:hover {
background-color: rgba(0, 255, 255, 0.5);
}

button:active {
color: #000000;
background-color: rgba(0, 255, 255, 0.75);
}
</style>
</head>

<body>
<script src=\"https://threejs.org/examples/jsm/libs/tween.module.min.js\"></script>
<script src=\"https://threejs.org/examples/jsm/controls/TrackballControls.js\"></script>
<script src=\"https://threejs.org/examples/jsm/renderers/CSS3DRenderer.js\"></script>

<div id=\"info\"><a href=\"http://piyocast.com/as\" target=\"_blank\">AppleScript 3D UI Demonstration</a> By Piyomaru Software</div>
<div id=\"container\"></div>
<div id=\"menu\">
<button id=\"table\">TABLE</button>
<button id=\"sphere\">SPHERE</button>
<button id=\"helix\">HELIX</button>
<button id=\"grid\">GRID</button>
</div>

    <!– Import maps polyfill –>
    <!– Remove this when import maps will be widely supported –>
    <script async src=\"https://unpkg.com/es-module-shims@1.5.8/dist/es-module-shims.js\"></script>

    <script type=\"importmap\">
      {
        \"imports\": {
          \"three\": \"https://unpkg.com/three@0.142.0/build/three.module.js\",
          \"OrbitControls\": \"https://unpkg.com/three@0.142.0/examples/jsm/controls/OrbitControls.js\"
        }
      }
    </script>

<script type=\"module\">
import * as THREE from ’https://threejs.org/build/three.module.js’;
import { TWEEN } from ’https://threejs.org/examples/jsm/libs/tween.module.min.js’;
import { TrackballControls } from ’https://threejs.org/examples/jsm/controls/TrackballControls.js’;
import { CSS3DRenderer, CSS3DObject } from ’https://threejs.org/examples/jsm/renderers/CSS3DRenderer.js’;

var table = [
\"1\", \"Hydrogen\", \"1.00794\", 1, 1,
\"2\", \"Helium\", \"4.002602\", 1, 2,
\"3\", \"Lithium\", \"6.941\", 1, 3,
\"4\", \"Beryllium\", \"9.012182\", 1, 4,
\"5\", \"Boron\", \"10.811\", 1, 5,
\"6\", \"Carbon\", \"12.0107\", 2, 1,
\"7\", \"Nitrogen\", \"14.0067\", 2, 3,
\"8\", \"Oxygen\", \"15.9994\", 3, 1,
\"9\", \"Fluorine\", \"18.9984032\", 3, 3,
\"101\", \"Saturday\", \"July\", 4, 2,
\"I\", \"Moscovium\", \"(290)\", 6, 1,
\"I\", \"Livermorium\", \"(293)\", 6, 2,
\"I\", \"Tennessine\", \"(294)\", 6, 3,
\"I\", \"Titanium\", \"47.867\", 6, 4,
\"I\", \"Vanadium\", \"50.9415\", 6, 5,
\"Y\", \"Chromium\", \"51.9961\", 8, 1,
\"Y\", \"Manganese\", \"54.938045\", 9, 2,
\"Y\", \"Iron\", \"55.845\", 10, 3,
\"Y\", \"Cobalt\", \"58.933195\", 10, 4,
\"Y\", \"Nickel\", \"58.6934\", 10, 5,
\"Y\", \"Copper\", \"63.546\", 11, 2,
\"Y\", \"Zinc\", \"65.38\", 12, 1,
\"O\", \"Gallium\", \"69.723\", 14, 1,
\"O\", \"Copernicium\", \"(285)\", 14, 2,
\"O\", \"Nihonium\", \"(286)\", 14, 3,
\"O\", \"Oganesson\", \"(294)\", 14, 4,
\"O\", \"Neon\", \"20.1797\", 14, 5,
\"O\", \"Sodium\", \"22.98976…\", 15, 1,
\"O\", \"Magnesium\", \"24.305\", 15, 5,
\"O\", \"Aluminium\", \"26.9815386\", 16, 1,
\"O\", \"Silicon\", \"28.0855\", 16, 5,
\"O\", \"Phosphorus\", \"30.973762\", 17, 1,
\"O\", \"Sulfur\", \"32.065\", 17, 2,
\"O\", \"Chlorine\", \"35.453\", 17, 3,
\"O\", \"Argon\", \"39.948\", 17, 4,
\"O\", \"Potassium\", \"39.948\", 17, 5,
\"M\", \"Calcium\", \"40.078\", 1, 7,
\"M\", \"Scandium\", \"44.955912\", 1, 8,
\"M\", \"Roentgenium\", \"(280)\", 1, 9,
\"M\", \"Germanium\", \"72.63\", 1, 10,
\"M\", \"Lead\", \"207.2\", 1, 11,
\"M\", \"Arsenic\", \"74.9216\", 2, 8,
\"M\", \"Selenium\", \"78.96\", 3, 9,
\"M\", \"Bromine\", \"79.904\", 3, 10,
\"M\", \"Krypton\", \"83.798\", 4, 8,
\"M\", \"Rubidium\", \"85.4678\", 5, 7,
\"M\", \"Strontium\", \"87.62\", 5, 8,
\"M\", \"Yttrium\", \"88.90585\", 5, 9,
\"M\", \"Zirconium\", \"91.224\", 5, 10,
\"M\", \"Niobium\", \"92.90628\", 5, 11,
\"A\", \"Molybdenum\", \"95.96\", 7,8,
\"A\", \"Technetium\", \"(98)\", 7, 9,
\"A\", \"Ruthenium\", \"101.07\", 7, 10,
\"A\", \"Rhodium\", \"102.9055\",7, 11,
\"A\", \"Palladium\", \"106.42\", 8, 7,
\"A\", \"Silver\", \"107.8682\", 8,9,
\"A\", \"Cadmium\", \"112.411\", 9, 7,
\"A\", \"Indium\", \"114.818\", 9, 9,
\"A\", \"Tin\", \"118.71\", 10, 8,
\"A\", \"Antimony\", \"121.76\", 10, 9,
\"A\", \"Gadolinium\", \"157.25\", 10, 10,
\"A\", \"Terbium\", \"158.92535\", 10, 11,
\"R\", \"Dysprosium\", \"162.5\", 12, 7,
\"R\", \"Holmium\", \"164.93032\", 12, 8,
\"R\", \"Erbium\", \"167.259\", 12, 9,
\"R\", \"Thulium\", \"168.93421\", 12, 10,
\"R\", \"Ytterbium\", \"173.054\", 12, 11,
\"R\", \"Lutetium\", \"174.9668\", 13, 7,
\"R\", \"Hafnium\", \"178.49\", 13, 9,
\"R\", \"Samarium\", \"150.36\", 14, 7,
\"R\", \"Europium\", \"151.964\", 14, 9,
\"R\", \"Tantalum\", \"180.94788\", 15, 8,
\"R\", \"Tungsten\", \"183.84\", 15, 10,
\"R\", \"Rhenium\", \"186.207\", 15, 11,
\"U\", \"Osmium\", \"190.23\", 17, 7,
\"U\", \"Iridium\", \"192.217\", 17,8,
\"U\", \"Platinum\", \"195.084\", 17, 9,
\"U\", \"Gold\", \"196.966569\", 17, 10,
\"U\", \"Mercury\", \"200.59\", 18, 11,
\"U\", \"Thallium\", \"204.3833\", 19, 11,
\"U\", \"Bismuth\", \"208.9804\", 20, 7,
\"U\", \"Polonium\", \"(209)\", 20, 8,
\"U\", \"Astatine\", \"(210)\", 20, 9,
\"U\", \"Francium\", \"(223)\", 20, 10,
\"U\", \"Radium\", \"(226)\", 22, 9,
\"U\", \"Actinium\", \"(227)\", 22, 10,
\"U\", \"Thorium\", \"232.03806\", 22, 11,
\"A\", \"Protactinium\", \"231.0588\", 22, 7,
\"A\", \"Uranium\", \"238.02891\", 23, 9,
\"A\", \"Neptunium\", \"(237)\", 23, 8,
\"A\", \"Plutonium\", \"(244)\", 23, 9,
\"A\", \"Americium\", \"(243)\", 23, 10,
\"A\", \"Curium\", \"(247)\", 23, 11,
\"S\", \"Berkelium\", \"(247)\", 24, 7,
\"S\", \"Californium\", \"(251)\", 24, 8,
\"S\", \"Einstenium\", \"(252)\", 24, 9,
\"S\", \"Fermium\", \"(257)\", 24, 11,
\"S\", \"Mendelevium\", \"(258)\", 25, 7,
\"S\", \"Nobelium\", \"(259)\", 25, 9,
\"S\", \"Lawrencium\", \"(262)\", 25, 11,
\"S\", \"Rutherfordium\", \"(267)\", 26, 7,
\"S\", \"Dubnium\", \"(268)\", 26, 9,
\"S\", \"Seaborgium\", \"(271)\", 26, 10,
\"S\", \"Bohrium\", \"(272)\", 26, 11,
\"A\", \"Hassium\", \"(270)\", 27, 8,
\"B\", \"Meitnerium\", \"(276)\", 27, 9,
\"C\", \"Darmstadium\", \"(281)\", 27, 8,
\"D\", \"Tellurium\", \"127.6\", 27, 9,
\"E\", \"Iodine\", \"126.90447\", 27, 10,
\"F\", \"Xenon\", \"131.293\", 28, 9,
\"G\", \"Caesium\", \"132.9054\", 28, 10,
\"H\", \"Barium\", \"132.9054\", 28, 11,
\"I\", \"Lanthanum\", \"138.90547\", 29, 8,
\"J\", \"Cerium\", \"140.116\", 29, 9,
\"K\", \"Praseodymium\", \"140.90765\", 29, 10,
\"L\", \"Neodymium\", \"144.242\", 29, 8,
\"M\", \"Promethium\", \"(145)\", 29, 9,
  \"PS\", \"Piyomaru Software\", \"(PiyoPiyo)\", 29, 10,
  \"AS\", \"AppleScript\", \"(osalang)\", 29, 11,
];

var camera, scene, renderer;
var controls;
var objects = [];
var targets = { table: [], sphere: [], helix: [], grid: [] };
init();
animate();

function init() {
camera = new THREE.PerspectiveCamera(40, window.innerWidth / window.innerHeight, 1, 10000);
camera.position.z = 3000;
scene = new THREE.Scene();

// table
for (var i = 0; i < table.length; i += 5) {

var element = document.createElement(’div’);
element.className = ’element’;

     //element.style.backgroundColor = ’rgba(128,0,64,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
    //element.style.backgroundColor = ’rgba(64,0,128,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
//element.style.backgroundColor = ’rgba(0,0,0,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
element.style.backgroundColor = ’rgba(0,127,127,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
//element.style.backgroundColor = ’rgba(18,77,174,’ + (Math.random() * 0.5 + 0.25) + ’)’;

var number = document.createElement(’div’);
number.className = ’number’;
number.textContent = (i / 5) + 1;
element.appendChild(number);
var symbol = document.createElement(’div’);
symbol.className = ’symbol’;
symbol.textContent = table[i];
element.appendChild(symbol);
var details = document.createElement(’div’);
details.className = ’details’;
details.innerHTML = table[i + 1] + ’<br>’ + table[i + 2];
element.appendChild(details);
var object = new CSS3DObject(element);
object.position.x = Math.random() * 4000 – 2000;
object.position.y = Math.random() * 4000 – 2000;
object.position.z = Math.random() * 4000 – 2000;
scene.add(object);
objects.push(object);
//
var object = new THREE.Object3D();
object.position.x = (table[i + 3] * 140) – 1330;
object.position.y = – (table[i + 4] * 180) + 990;
targets.table.push(object);
}

// sphere
var vector = new THREE.Vector3();
for (var i = 0, l = objects.length; i < l; i++) {
var phi = Math.acos(- 1 + (2 * i) / l);
var theta = Math.sqrt(l * Math.PI) * phi;
var object = new THREE.Object3D();
object.position.setFromSphericalCoords(800, phi, theta);
vector.copy(object.position).multiplyScalar(2);
object.lookAt(vector);
targets.sphere.push(object);
}

// helix
var vector = new THREE.Vector3();
for (var i = 0, l = objects.length; i < l; i++) {
var theta = i * 0.175 + Math.PI;
var y = – (i * 8) + 450;
var object = new THREE.Object3D();
object.position.setFromCylindricalCoords(900, theta, y);
vector.x = object.position.x * 2;
vector.y = object.position.y;
vector.z = object.position.z * 2;
object.lookAt(vector);
targets.helix.push(object);
}

// grid
for (var i = 0; i < objects.length; i++) {
var object = new THREE.Object3D();
object.position.x = ((i % 5) * 400) – 800;
object.position.y = (- (Math.floor(i / 5) % 5) * 400) + 800;
object.position.z = (Math.floor(i / 25)) * 1000 – 2000;
targets.grid.push(object);
}

//
renderer = new CSS3DRenderer();
renderer.setSize(window.innerWidth, window.innerHeight);
document.getElementById(’container’).appendChild(renderer.domElement);

//
controls = new TrackballControls(camera, renderer.domElement);
controls.minDistance = 500;
controls.maxDistance = 6000;
controls.addEventListener(’change’, render);

var button = document.getElementById(’table’);
button.addEventListener(’click’, function () {
transform(targets.table, 2000);
}, false);

var button = document.getElementById(’sphere’);
button.addEventListener(’click’, function () {
transform(targets.sphere, 2000);
}, false);

var button = document.getElementById(’helix’);
button.addEventListener(’click’, function () {
transform(targets.helix, 2000);
}, false);

var button = document.getElementById(’grid’);
button.addEventListener(’click’, function () {
transform(targets.grid, 2000);
}, false);

transform(targets.table, 2000);
//
window.addEventListener(’resize’, onWindowResize, false);
}

function transform(targets, duration) {
TWEEN.removeAll();
for (var i = 0; i < objects.length; i++) {
var object = objects[i];
var target = targets[i];
new TWEEN.Tween(object.position)
.to({ x: target.position.x, y: target.position.y, z: target.position.z }, Math.random() * duration + duration)
.easing(TWEEN.Easing.Exponential.InOut)
.start();
new TWEEN.Tween(object.rotation)
.to({ x: target.rotation.x, y: target.rotation.y, z: target.rotation.z }, Math.random() * duration + duration)
.easing(TWEEN.Easing.Exponential.InOut)
.start();
}
new TWEEN.Tween(this)
.to({}, duration * 2)
.onUpdate(render)
.start();
}

function onWindowResize() {
camera.aspect = window.innerWidth / window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth, window.innerHeight);
render();
}

function animate() {
requestAnimationFrame(animate);
TWEEN.update();
controls.update();
}

function render() {
renderer.render(scene, camera);
}
</script>
</body>

</html>"

set paramObj to {myMessage:"WebGL & three.js Test", mySubMessage:"This is a WebGL UI using three.js", htmlStr:myStr}
–my browseStrWebContents:paramObj–for debug
my performSelectorOnMainThread:"browseStrWebContents:" withObject:(paramObj) waitUntilDone:true

on browseStrWebContents:paramObj
  set aMainMes to myMessage of paramObj

set aSubMes to mySubMessage of paramObj

set htmlString to (htmlStr of paramObj)


set aWidth to 1600

set aHeight to 900


–WebViewをつくる

set aConf to WKWebViewConfiguration’s alloc()’s init()


–指定HTML内のJavaScriptをFetch

set jsSource to pickUpFromToStr(htmlString, "<script src", "</script>") of me


set userScript to WKUserScript’s alloc()’s initWithSource:jsSource injectionTime:(WKUserScriptInjectionTimeAtDocumentEnd) forMainFrameOnly:true

set userContentController to WKUserContentController’s alloc()’s init()

userContentController’s addUserScript:(userScript)

aConf’s setUserContentController:userContentController


set aWebView to WKWebView’s alloc()’s initWithFrame:(current application’s NSMakeRect(0, 0, aWidth, aHeight)) configuration:aConf

aWebView’s setNavigationDelegate:me

aWebView’s setUIDelegate:me

aWebView’s setTranslatesAutoresizingMaskIntoConstraints:true

using terms from scripting additions
    set bURL to |NSURL|’s fileURLWithPath:(POSIX path of (path to me))
  end using terms from

aWebView’s loadHTMLString:htmlString baseURL:(bURL)


— set up alert

set theAlert to NSAlert’s alloc()’s init()

tell theAlert
    its setMessageText:aMainMes

its setInformativeText:aSubMes

its addButtonWithTitle:"OK"

–its addButtonWithTitle:"Cancel"

its setAccessoryView:aWebView


set myWindow to its |window|
  end tell


— show alert in modal loop

NSRunningApplication’s currentApplication()’s activateWithOptions:0

my performSelectorOnMainThread:"doModal:" withObject:(theAlert) waitUntilDone:true


–Stop Web View Action

set bURL to |NSURL|’s URLWithString:"about:blank"

set bReq to NSURLRequest’s requestWithURL:bURL

aWebView’s loadRequest:bReq


if (my returnCode as number) = 1001 then error number -128
end browseStrWebContents:

on doModal:aParam
  set (my returnCode) to (aParam’s runModal()) as number
end doModal:

on viewDidLoad:aNotification
  return true
end viewDidLoad:

on fetchJSSourceString(aURL)
  set jsURL to |NSURL|’s URLWithString:aURL

set jsSourceString to NSString’s stringWithContentsOfURL:jsURL encoding:(NSUTF8StringEncoding) |error|:(missing value)

return jsSourceString
end fetchJSSourceString

on pickUpFromToStr(aStr as string, s1Str as string, s2Str as string)
  set a1Offset to offset of s1Str in aStr

if a1Offset = 0 then return false

set bStr to text (a1Offset + (length of s1Str)) thru -1 of aStr

set a2Offset to offset of s2Str in bStr

if a2Offset = 0 then return false

set cStr to text 1 thru (a2Offset – (length of s2Str)) of bStr

return cStr as string
end pickUpFromToStr

–リストを任意のデリミタ付きでテキストに
on retArrowText(aList, aDelim)
  set aText to ""

set curDelim to AppleScript’s text item delimiters

set AppleScript’s text item delimiters to aDelim

set aText to aList as text

set AppleScript’s text item delimiters to curDelim

return aText
end retArrowText

on array2DToJSONArray(aList)
  set anArray to current application’s NSMutableArray’s arrayWithArray:aList

set jsonData to current application’s NSJSONSerialization’s dataWithJSONObject:anArray options:(0 as integer) |error|:(missing value) –0 is

set resString to current application’s NSString’s alloc()’s initWithData:jsonData encoding:(current application’s NSUTF8StringEncoding)

return resString
end array2DToJSONArray

on parseByDelim(aData, aDelim)
  set curDelim to AppleScript’s text item delimiters

set AppleScript’s text item delimiters to aDelim

set dList to text items of aData

set AppleScript’s text item delimiters to curDelim

return dList
end parseByDelim

★Click Here to Open This Script

Posted in 3D dialog JavaScript | Tagged 12.0savvy 13.0savvy WKWebView | 1 Comment

アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js)

Posted on 6月 13, 2020 by Takaaki Naganoya

アラートダイアログ上にさまざまなGUI部品を配置してUIを作成する「箱庭UI」シリーズ、WkWebViewを配置してWeb GL+three.jsによる3Dアニメーションコンテンツを表示するAppleScriptです。

# macOS 10.14.6上のWkWebViewで途中のアップデートから、mouse dragのイベントが取れなくなっています。macOS 10.15および11.0では問題なくmouse dragのイベントを取得できているのですが、、、、。ちなみに、Safariで表示させた場合には問題ありません。同様にWkWebViewを使っているとおぼしきFileMaker Pro v19のWebViewerも同様にドラッグ操作が抜けるので、自分が間抜けなせいではないと思いま

# macOS 13.3beta上では、SafariでもWkWebViewでもWebGL+three.jsで作られているこの内容を表示できません。全世界のデベロッパーがWkWebView上でWebGL+three.jsのコンテンツが動かない(表示できない)ことを確認しています。
→ 最新のmacOSで動くバージョンを掲載アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js)v3

多項目選択メニュー部品のようであり、画面下部にあるTABLE(少しデータをいじくってPIYOMARU表示)、SPHERE、HELIX、GRIDのボタンから表示メニュー形態を選択可能になっています。操作は、マウスのドラッグとマウスのスクロール(トラックパッドでもスクロール操作を)です。


▲TABLE 表示


▲SPHERE 表示


▲HELIX 表示


▲GRID 表示

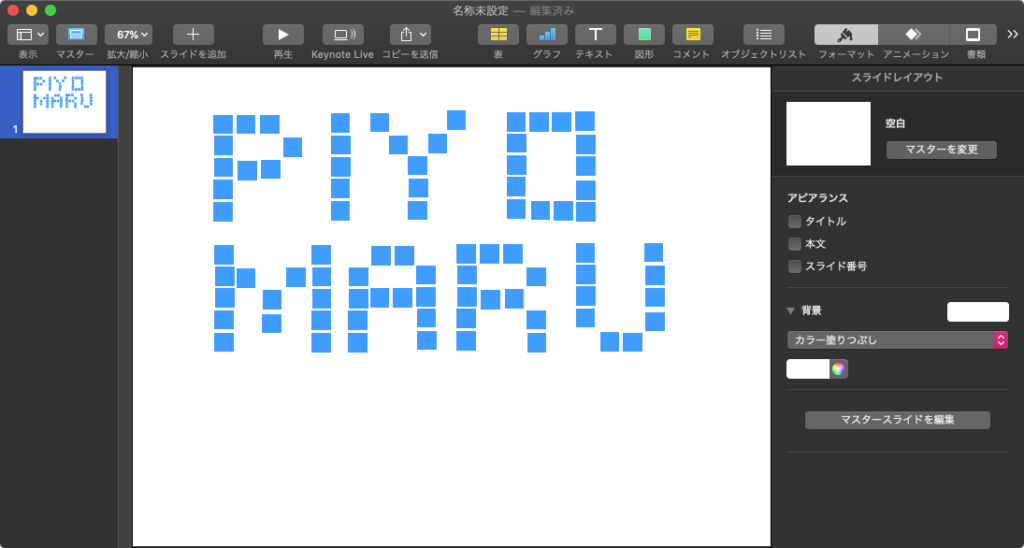

ひととおり、最初のTABLE表示部分の部品表示座標データをいじくって、表示色をいろいろ変更してみて、表示データをAppleScript側のリスト変数で与えるところまでやりかけて、リストからJSON文字列に問題なく変換できているものの、実際にHTMLコンテンツに合成して再生まで行くと何も表示されないという状況です。何も考えずに横長のデータを生成したので、そのあたり横幅に制限があったりするのかもしれません。

球体にDOM要素をテクスチャマッピングするSPHERE表示では、データ数が想定どおりの個数ないと球体の表示が成立しないため、そのあたりにデモプログラムっぽさが垣間見えます。

現状、ただ表示するだけで項目選択などは行えない状況ですが、これを強化して項目選択UIとして育てていくのか、Xcode上のアプリケーションに統合する方向でブラッシュアップするのか、いろいろ協議した結果、現状で既存の選択UIより高い実用性を確保できない、という結論に至ったため「AppleScriptでここまでやってみた」という技術的なデモンストレーションとしてBlog上で公開しておくぐらいのものだろうという話に。

その後、FileMaker ProのWebViewer上で内容可変+クリック受信機能つきの3D Rotationメニューを実装できるところまで内容の解析ができました。

AppleScript名:アラートダイアログ上にWebViewで3Dコンテンツを表示(WebGL+three.js).scptd
—
–  Created by: Takaaki Naganoya
–  Created on: 2020/06/13
—
–  Copyright © 2020 Piyomaru Software, All Rights Reserved
—
use AppleScript version "2.4" — Yosemite (10.10) or later
use framework "Foundation"
use framework "AppKit"
use framework "WebKit"
use scripting additions

property |NSURL| : a reference to current application’s |NSURL|
property NSAlert : a reference to current application’s NSAlert
property NSString : a reference to current application’s NSString
property NSButton : a reference to current application’s NSButton
property WKWebView : a reference to current application’s WKWebView
property WKUserScript : a reference to current application’s WKUserScript
property NSURLRequest : a reference to current application’s NSURLRequest
property NSRunningApplication : a reference to current application’s NSRunningApplication
property NSUTF8StringEncoding : a reference to current application’s NSUTF8StringEncoding
property WKUserContentController : a reference to current application’s WKUserContentController
property WKWebViewConfiguration : a reference to current application’s WKWebViewConfiguration
property WKUserScriptInjectionTimeAtDocumentEnd : a reference to current application’s WKUserScriptInjectionTimeAtDocumentEnd

property returnCode : 0

–https://www.cresco.co.jp/blog/entry/7427/
— By sgi-chang @ UX Design Center
set myStr to "<!DOCTYPE html>
<html>

<head>
<title>three.js css3d – cresco xmas inspired by periodic table</title>
<meta charset=\"utf-8\">
<meta name=\"viewport\" content=\"width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0\">
<link type=\"text/css\" rel=\"stylesheet\" href=\"https://threejs.org/examples/main.css\">
<style>
a {
color: #8ff;
}

#menu {
position: absolute;
bottom: 20px;
width: 100%;
text-align: center;
}

.element {
width: 120px;
height: 160px;
box-shadow: 0px 0px 12px rgba(0, 255, 255, 0.5);
border: 1px solid rgba(127, 255, 255, 0.25);
font-family: Helvetica, sans-serif;
text-align: center;
line-height: normal;
cursor: default;
}

.element:hover {
box-shadow: 0px 0px 12px rgba(0, 255, 255, 0.75);
border: 1px solid rgba(127, 255, 255, 0.75);
}

.element .number {
position: absolute;
top: 20px;
right: 20px;
font-size: 12px;
color: rgba(127, 255, 255, 0.75);
}

.element .symbol {
position: absolute;
top: 40px;
left: 0px;
right: 0px;
font-size: 60px;
font-weight: bold;
color: rgba(255, 255, 255, 0.75);
text-shadow: 0 0 10px rgba(0, 255, 255, 0.95);
}

.element .details {
position: absolute;
bottom: 15px;
left: 0px;
right: 0px;
font-size: 12px;
color: rgba(127, 255, 255, 0.75);
}

button {
color: rgba(127, 255, 255, 0.75);
background: transparent;
outline: 1px solid rgba(127, 255, 255, 0.75);
border: 0px;
padding: 5px 10px;
cursor: pointer;
}

button:hover {
background-color: rgba(0, 255, 255, 0.5);
}

button:active {
color: #000000;
background-color: rgba(0, 255, 255, 0.75);
}
</style>
</head>

<body>
<script src=\"https://threejs.org/examples/jsm/libs/tween.module.min.js\"></script>
<script src=\"https://threejs.org/examples/jsm/controls/TrackballControls.js\"></script>
<script src=\"https://threejs.org/examples/jsm/renderers/CSS3DRenderer.js\"></script>

<div id=\"info\"><a href=\"http://piyocast.com/as\" target=\"_blank\">AppleScript 3D UI Demonstration</a> By Piyomaru Software</div>
<div id=\"container\"></div>
<div id=\"menu\">
<button id=\"table\">TABLE</button>
<button id=\"sphere\">SPHERE</button>
<button id=\"helix\">HELIX</button>
<button id=\"grid\">GRID</button>
</div>

<!– <script> –>
<script type=\"module\">
import * as THREE from ’https://threejs.org/build/three.module.js’;
import { TWEEN } from ’https://threejs.org/examples/jsm/libs/tween.module.min.js’;
import { TrackballControls } from ’https://threejs.org/examples/jsm/controls/TrackballControls.js’;
import { CSS3DRenderer, CSS3DObject } from ’https://threejs.org/examples/jsm/renderers/CSS3DRenderer.js’;

var table = [
\"P\", \"Hydrogen\", \"1.00794\", 1, 1,
\"P\", \"Helium\", \"4.002602\", 1, 2,
\"P\", \"Lithium\", \"6.941\", 1, 3,
\"P\", \"Beryllium\", \"9.012182\", 1, 4,
\"P\", \"Boron\", \"10.811\", 1, 5,
\"P\", \"Carbon\", \"12.0107\", 2, 1,
\"P\", \"Nitrogen\", \"14.0067\", 2, 3,
\"P\", \"Oxygen\", \"15.9994\", 3, 1,
\"P\", \"Fluorine\", \"18.9984032\", 3, 3,
\"P\", \"Flerovium\", \"(289)\", 4, 2,
\"I\", \"Moscovium\", \"(290)\", 6, 1,
\"I\", \"Livermorium\", \"(293)\", 6, 2,
\"I\", \"Tennessine\", \"(294)\", 6, 3,
\"I\", \"Titanium\", \"47.867\", 6, 4,
\"I\", \"Vanadium\", \"50.9415\", 6, 5,
\"Y\", \"Chromium\", \"51.9961\", 8, 1,
\"Y\", \"Manganese\", \"54.938045\", 9, 2,
\"Y\", \"Iron\", \"55.845\", 10, 3,
\"Y\", \"Cobalt\", \"58.933195\", 10, 4,
\"Y\", \"Nickel\", \"58.6934\", 10, 5,
\"Y\", \"Copper\", \"63.546\", 11, 2,
\"Y\", \"Zinc\", \"65.38\", 12, 1,
\"O\", \"Gallium\", \"69.723\", 14, 1,
\"O\", \"Copernicium\", \"(285)\", 14, 2,
\"O\", \"Nihonium\", \"(286)\", 14, 3,
\"O\", \"Oganesson\", \"(294)\", 14, 4,
\"O\", \"Neon\", \"20.1797\", 14, 5,
\"O\", \"Sodium\", \"22.98976…\", 15, 1,
\"O\", \"Magnesium\", \"24.305\", 15, 5,
\"O\", \"Aluminium\", \"26.9815386\", 16, 1,
\"O\", \"Silicon\", \"28.0855\", 16, 5,
\"O\", \"Phosphorus\", \"30.973762\", 17, 1,
\"O\", \"Sulfur\", \"32.065\", 17, 2,
\"O\", \"Chlorine\", \"35.453\", 17, 3,
\"O\", \"Argon\", \"39.948\", 17, 4,
\"O\", \"Potassium\", \"39.948\", 17, 5,
\"M\", \"Calcium\", \"40.078\", 1, 7,
\"M\", \"Scandium\", \"44.955912\", 1, 8,
\"M\", \"Roentgenium\", \"(280)\", 1, 9,
\"M\", \"Germanium\", \"72.63\", 1, 10,
\"M\", \"Lead\", \"207.2\", 1, 11,
\"M\", \"Arsenic\", \"74.9216\", 2, 8,
\"M\", \"Selenium\", \"78.96\", 3, 9,
\"M\", \"Bromine\", \"79.904\", 3, 10,
\"M\", \"Krypton\", \"83.798\", 4, 8,
\"M\", \"Rubidium\", \"85.4678\", 5, 7,
\"M\", \"Strontium\", \"87.62\", 5, 8,
\"M\", \"Yttrium\", \"88.90585\", 5, 9,
\"M\", \"Zirconium\", \"91.224\", 5, 10,
\"M\", \"Niobium\", \"92.90628\", 5, 11,
\"A\", \"Molybdenum\", \"95.96\", 7,8,
\"A\", \"Technetium\", \"(98)\", 7, 9,
\"A\", \"Ruthenium\", \"101.07\", 7, 10,
\"A\", \"Rhodium\", \"102.9055\",7, 11,
\"A\", \"Palladium\", \"106.42\", 8, 7,
\"A\", \"Silver\", \"107.8682\", 8,9,
\"A\", \"Cadmium\", \"112.411\", 9, 7,
\"A\", \"Indium\", \"114.818\", 9, 9,
\"A\", \"Tin\", \"118.71\", 10, 8,
\"A\", \"Antimony\", \"121.76\", 10, 9,
\"A\", \"Gadolinium\", \"157.25\", 10, 10,
\"A\", \"Terbium\", \"158.92535\", 10, 11,
\"R\", \"Dysprosium\", \"162.5\", 12, 7,
\"R\", \"Holmium\", \"164.93032\", 12, 8,
\"R\", \"Erbium\", \"167.259\", 12, 9,
\"R\", \"Thulium\", \"168.93421\", 12, 10,
\"R\", \"Ytterbium\", \"173.054\", 12, 11,
\"R\", \"Lutetium\", \"174.9668\", 13, 7,
\"R\", \"Hafnium\", \"178.49\", 13, 9,
\"R\", \"Samarium\", \"150.36\", 14, 7,
\"R\", \"Europium\", \"151.964\", 14, 9,
\"R\", \"Tantalum\", \"180.94788\", 15, 8,
\"R\", \"Tungsten\", \"183.84\", 15, 10,
\"R\", \"Rhenium\", \"186.207\", 15, 11,
\"U\", \"Osmium\", \"190.23\", 17, 7,
\"U\", \"Iridium\", \"192.217\", 17,8,
\"U\", \"Platinum\", \"195.084\", 17, 9,
\"U\", \"Gold\", \"196.966569\", 17, 10,
\"U\", \"Mercury\", \"200.59\", 18, 11,
\"U\", \"Thallium\", \"204.3833\", 19, 11,
\"U\", \"Bismuth\", \"208.9804\", 20, 7,
\"U\", \"Polonium\", \"(209)\", 20, 8,
\"U\", \"Astatine\", \"(210)\", 20, 9,
\"U\", \"Francium\", \"(223)\", 20, 10,
\"U\", \"Radium\", \"(226)\", 22, 9,
\"U\", \"Actinium\", \"(227)\", 22, 10,
\"U\", \"Thorium\", \"232.03806\", 22, 11,
\"A\", \"Protactinium\", \"231.0588\", 22, 7,
\"A\", \"Uranium\", \"238.02891\", 23, 9,
\"A\", \"Neptunium\", \"(237)\", 23, 8,
\"A\", \"Plutonium\", \"(244)\", 23, 9,
\"A\", \"Americium\", \"(243)\", 23, 10,
\"A\", \"Curium\", \"(247)\", 23, 11,
\"S\", \"Berkelium\", \"(247)\", 24, 7,
\"S\", \"Californium\", \"(251)\", 24, 8,
\"S\", \"Einstenium\", \"(252)\", 24, 9,
\"S\", \"Fermium\", \"(257)\", 24, 11,
\"S\", \"Mendelevium\", \"(258)\", 25, 7,
\"S\", \"Nobelium\", \"(259)\", 25, 9,
\"S\", \"Lawrencium\", \"(262)\", 25, 11,
\"S\", \"Rutherfordium\", \"(267)\", 26, 7,
\"S\", \"Dubnium\", \"(268)\", 26, 9,
\"S\", \"Seaborgium\", \"(271)\", 26, 10,
\"S\", \"Bohrium\", \"(272)\", 26, 11,
\"A\", \"Hassium\", \"(270)\", 27, 8,
\"B\", \"Meitnerium\", \"(276)\", 27, 9,
\"C\", \"Darmstadium\", \"(281)\", 27, 8,
\"D\", \"Tellurium\", \"127.6\", 27, 9,
\"E\", \"Iodine\", \"126.90447\", 27, 10,
\"F\", \"Xenon\", \"131.293\", 28, 9,
\"G\", \"Caesium\", \"132.9054\", 28, 10,
\"H\", \"Barium\", \"132.9054\", 28, 11,
\"I\", \"Lanthanum\", \"138.90547\", 29, 8,
\"J\", \"Cerium\", \"140.116\", 29, 9,
\"K\", \"Praseodymium\", \"140.90765\", 29, 10,
\"L\", \"Neodymium\", \"144.242\", 29, 8,
\"M\", \"Promethium\", \"(145)\", 29, 9,
  \"PS\", \"Piyomaru Software\", \"(PiyoPiyo)\", 29, 10,
  \"AS\", \"AppleScript\", \"(osalang)\", 29, 11,
];

var camera, scene, renderer;
var controls;
var objects = [];
var targets = { table: [], sphere: [], helix: [], grid: [] };
init();
animate();

function init() {
camera = new THREE.PerspectiveCamera(40, window.innerWidth / window.innerHeight, 1, 10000);
camera.position.z = 3000;
scene = new THREE.Scene();

// table
for (var i = 0; i < table.length; i += 5) {

var element = document.createElement(’div’);
element.className = ’element’;

     //element.style.backgroundColor = ’rgba(128,0,64,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
    //element.style.backgroundColor = ’rgba(64,0,128,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
//element.style.backgroundColor = ’rgba(0,0,0,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
element.style.backgroundColor = ’rgba(0,127,127,’ + ( Math.random() * 0.5 + 0.25 ) + ’)’;
//element.style.backgroundColor = ’rgba(18,77,174,’ + (Math.random() * 0.5 + 0.25) + ’)’;

var number = document.createElement(’div’);
number.className = ’number’;
number.textContent = (i / 5) + 1;
element.appendChild(number);
var symbol = document.createElement(’div’);
symbol.className = ’symbol’;
symbol.textContent = table[i];
element.appendChild(symbol);
var details = document.createElement(’div’);
details.className = ’details’;
details.innerHTML = table[i + 1] + ’<br>’ + table[i + 2];
element.appendChild(details);
var object = new CSS3DObject(element);
object.position.x = Math.random() * 4000 – 2000;
object.position.y = Math.random() * 4000 – 2000;
object.position.z = Math.random() * 4000 – 2000;
scene.add(object);
objects.push(object);
//
var object = new THREE.Object3D();
object.position.x = (table[i + 3] * 140) – 1330;
object.position.y = – (table[i + 4] * 180) + 990;
targets.table.push(object);
}

// sphere
var vector = new THREE.Vector3();
for (var i = 0, l = objects.length; i < l; i++) {
var phi = Math.acos(- 1 + (2 * i) / l);
var theta = Math.sqrt(l * Math.PI) * phi;
var object = new THREE.Object3D();
object.position.setFromSphericalCoords(800, phi, theta);
vector.copy(object.position).multiplyScalar(2);
object.lookAt(vector);
targets.sphere.push(object);
}

// helix
var vector = new THREE.Vector3();
for (var i = 0, l = objects.length; i < l; i++) {
var theta = i * 0.175 + Math.PI;
var y = – (i * 8) + 450;
var object = new THREE.Object3D();
object.position.setFromCylindricalCoords(900, theta, y);
vector.x = object.position.x * 2;
vector.y = object.position.y;
vector.z = object.position.z * 2;
object.lookAt(vector);
targets.helix.push(object);
}

// grid
for (var i = 0; i < objects.length; i++) {
var object = new THREE.Object3D();
object.position.x = ((i % 5) * 400) – 800;
object.position.y = (- (Math.floor(i / 5) % 5) * 400) + 800;
object.position.z = (Math.floor(i / 25)) * 1000 – 2000;
targets.grid.push(object);
}

//
renderer = new CSS3DRenderer();
renderer.setSize(window.innerWidth, window.innerHeight);
document.getElementById(’container’).appendChild(renderer.domElement);

//
controls = new TrackballControls(camera, renderer.domElement);
controls.minDistance = 500;
controls.maxDistance = 6000;
controls.addEventListener(’change’, render);

var button = document.getElementById(’table’);
button.addEventListener(’click’, function () {
transform(targets.table, 2000);
}, false);

var button = document.getElementById(’sphere’);
button.addEventListener(’click’, function () {
transform(targets.sphere, 2000);
}, false);

var button = document.getElementById(’helix’);
button.addEventListener(’click’, function () {
transform(targets.helix, 2000);
}, false);

var button = document.getElementById(’grid’);
button.addEventListener(’click’, function () {
transform(targets.grid, 2000);
}, false);

transform(targets.table, 2000);
//
window.addEventListener(’resize’, onWindowResize, false);
}

function transform(targets, duration) {
TWEEN.removeAll();
for (var i = 0; i < objects.length; i++) {
var object = objects[i];
var target = targets[i];
new TWEEN.Tween(object.position)
.to({ x: target.position.x, y: target.position.y, z: target.position.z }, Math.random() * duration + duration)
.easing(TWEEN.Easing.Exponential.InOut)
.start();
new TWEEN.Tween(object.rotation)
.to({ x: target.rotation.x, y: target.rotation.y, z: target.rotation.z }, Math.random() * duration + duration)
.easing(TWEEN.Easing.Exponential.InOut)
.start();
}
new TWEEN.Tween(this)
.to({}, duration * 2)
.onUpdate(render)
.start();
}

function onWindowResize() {
camera.aspect = window.innerWidth / window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth, window.innerHeight);
render();
}

function animate() {
requestAnimationFrame(animate);
TWEEN.update();
controls.update();
}

function render() {
renderer.render(scene, camera);
}
</script>
</body>

</html>"

set paramObj to {myMessage:"WebGL & three.js Test", mySubMessage:"This is a WebGL UI using charts.js", htmlStr:myStr}
–my browseStrWebContents:paramObj–for debug
my performSelectorOnMainThread:"browseStrWebContents:" withObject:(paramObj) waitUntilDone:true

on browseStrWebContents:paramObj
  set aMainMes to myMessage of paramObj

set aSubMes to mySubMessage of paramObj

set htmlString to (htmlStr of paramObj)


set aWidth to 1600

set aHeight to 950


–WebViewをつくる

set aConf to WKWebViewConfiguration’s alloc()’s init()


–指定HTML内のJavaScriptをFetch

set jsSource to pickUpFromToStr(htmlString, "<script src", "</script>") of me


set userScript to WKUserScript’s alloc()’s initWithSource:jsSource injectionTime:(WKUserScriptInjectionTimeAtDocumentEnd) forMainFrameOnly:true

set userContentController to WKUserContentController’s alloc()’s init()

userContentController’s addUserScript:(userScript)

aConf’s setUserContentController:userContentController


set aWebView to WKWebView’s alloc()’s initWithFrame:(current application’s NSMakeRect(0, 0, aWidth, aHeight)) configuration:aConf

aWebView’s setNavigationDelegate:me

aWebView’s setUIDelegate:me

aWebView’s setTranslatesAutoresizingMaskIntoConstraints:true

using terms from scripting additions
    set bURL to |NSURL|’s fileURLWithPath:(POSIX path of (path to me))
  end using terms from

aWebView’s loadHTMLString:htmlString baseURL:(bURL)


— set up alert

set theAlert to NSAlert’s alloc()’s init()

tell theAlert
    its setMessageText:aMainMes

its setInformativeText:aSubMes

its addButtonWithTitle:"OK"

–its addButtonWithTitle:"Cancel"

its setAccessoryView:aWebView


set myWindow to its |window|
  end tell


— show alert in modal loop

NSRunningApplication’s currentApplication()’s activateWithOptions:0

my performSelectorOnMainThread:"doModal:" withObject:(theAlert) waitUntilDone:true


–Stop Web View Action

set bURL to |NSURL|’s URLWithString:"about:blank"

set bReq to NSURLRequest’s requestWithURL:bURL

aWebView’s loadRequest:bReq


if (my returnCode as number) = 1001 then error number -128
end browseStrWebContents:

on doModal:aParam
  set (my returnCode) to (aParam’s runModal()) as number
end doModal:

on viewDidLoad:aNotification
  return true
end viewDidLoad:

on fetchJSSourceString(aURL)
  set jsURL to |NSURL|’s URLWithString:aURL

set jsSourceString to NSString’s stringWithContentsOfURL:jsURL encoding:(NSUTF8StringEncoding) |error|:(missing value)

return jsSourceString
end fetchJSSourceString

on pickUpFromToStr(aStr as string, s1Str as string, s2Str as string)
  set a1Offset to offset of s1Str in aStr

if a1Offset = 0 then return false

set bStr to text (a1Offset + (length of s1Str)) thru -1 of aStr

set a2Offset to offset of s2Str in bStr

if a2Offset = 0 then return false

set cStr to text 1 thru (a2Offset – (length of s2Str)) of bStr

return cStr as string
end pickUpFromToStr

–リストを任意のデリミタ付きでテキストに
on retArrowText(aList, aDelim)
  set aText to ""

set curDelim to AppleScript’s text item delimiters

set AppleScript’s text item delimiters to aDelim

set aText to aList as text

set AppleScript’s text item delimiters to curDelim

return aText
end retArrowText

on array2DToJSONArray(aList)
  set anArray to current application’s NSMutableArray’s arrayWithArray:aList

set jsonData to current application’s NSJSONSerialization’s dataWithJSONObject:anArray options:(0 as integer) |error|:(missing value) –0 is

set resString to current application’s NSString’s alloc()’s initWithData:jsonData encoding:(current application’s NSUTF8StringEncoding)

return resString
end array2DToJSONArray

on parseByDelim(aData, aDelim)
  set curDelim to AppleScript’s text item delimiters

set AppleScript’s text item delimiters to aDelim

set dList to text items of aData

set AppleScript’s text item delimiters to curDelim

return dList
end parseByDelim

★Click Here to Open This Script

Posted in 3D Animation dialog JSON | Tagged 10.13savvy 10.14savvy 10.15savvy | Leave a comment

電子書籍(PDF)をオンラインストアで販売中!

Google Search

Popular posts

  • 開発機としてM2 Mac miniが来たのでガチレビュー
  • macOS 13.6.5 AS系のバグ、一切直らず
  • CotEditorで2つの書類の行単位での差分検出
  • Apple純正マウス、キーボードのバッテリー残量取得
  • macOS 15, Sequoia
  • 初心者がつまづきやすい「log」コマンド
  • ディスプレイをスリープ状態にして処理続行
  • Adobe AcrobatをAppleScriptから操作してPDF圧縮
  • 指定のWordファイルをPDFに書き出す
  • メキシカンハットの描画
  • 与えられた文字列の1D Listのすべての順列組み合わせパターン文字列を返す v3(ベンチマーク用)
  • macOS 13 TTS環境の変化について
  • 2023年に書いた価値あるAppleScript
  • Pages本執筆中に、2つの書類モード切り替えに気がついた
  • Pixelmator Pro v3.6.4でAppleScriptからの操作時の挙動に違和感が
  • 可変次元のベクトルに対応したコサイン類似度計算
  • AdobeがInDesign v19.4からPOSIX pathを採用
  • Safariで「プロファイル」機能を使うとAppleScriptの処理に影響
  • Cocoa Scripting Course 続刊計画
  • NaturalLanguage.frameworkでNLEmbeddingの処理が可能な言語をチェック

Tags

10.11savvy (1102) 10.12savvy (1243) 10.13savvy (1392) 10.14savvy (587) 10.15savvy (438) 11.0savvy (282) 12.0savvy (203) 13.0savvy (157) 14.0savvy (104) 15.0savvy (82) CotEditor (63) Finder (51) iTunes (19) Keynote (112) NSAlert (60) NSArray (51) NSBitmapImageRep (20) NSBundle (20) NSButton (34) NSColor (51) NSDictionary (27) NSFileManager (23) NSFont (19) NSImage (41) NSJSONSerialization (21) NSMutableArray (62) NSMutableDictionary (21) NSPredicate (36) NSRunningApplication (56) NSScreen (30) NSScrollView (22) NSString (117) NSURL (97) NSURLRequest (23) NSUTF8StringEncoding (30) NSView (33) NSWorkspace (20) Numbers (70) Pages (52) Safari (44) Script Editor (26) WKUserContentController (21) WKUserScript (20) WKWebView (23) WKWebViewConfiguration (22)

カテゴリー

  • 2D Bin Packing
  • 3D
  • AirDrop
  • AirPlay
  • Animation
  • AppleScript Application on Xcode
  • Beginner
  • Benchmark
  • beta
  • Bluetooth
  • Books
  • boolean
  • bounds
  • Bug
  • Calendar
  • call by reference
  • Clipboard
  • Cocoa-AppleScript Applet
  • Code Sign
  • Color
  • Custom Class
  • dialog
  • diff
  • drive
  • Droplet
  • exif
  • file
  • File path
  • filter
  • folder
  • Font
  • Font
  • GAME
  • geolocation
  • GUI
  • GUI Scripting
  • Hex
  • History
  • How To
  • iCloud
  • Icon
  • Image
  • Input Method
  • Internet
  • iOS App
  • JavaScript
  • JSON
  • JXA
  • Keychain
  • Keychain
  • Language
  • Library
  • list
  • Locale
  • Localize
  • Machine Learning
  • Map
  • Markdown
  • Menu
  • Metadata
  • MIDI
  • MIME
  • Natural Language Processing
  • Network
  • news
  • Noification
  • Notarization
  • Number
  • Object control
  • OCR
  • OSA
  • parallel processing
  • PDF
  • Peripheral
  • PRODUCTS
  • QR Code
  • Raw AppleEvent Code
  • Record
  • rectangle
  • recursive call
  • regexp
  • Release
  • Remote Control
  • Require Control-Command-R to run
  • REST API
  • Review
  • RTF
  • Sandbox
  • Screen Saver
  • Script Libraries
  • sdef
  • search
  • Security
  • selection
  • shell script
  • Shortcuts Workflow
  • Sort
  • Sound
  • Spellchecker
  • Spotlight
  • SVG
  • System
  • Tag
  • Telephony
  • Text
  • Text to Speech
  • timezone
  • Tools
  • Update
  • URL
  • UTI
  • Web Contents Control
  • WiFi
  • XML
  • XML-RPC
  • イベント(Event)
  • 未分類

アーカイブ

  • 2024年12月
  • 2024年11月
  • 2024年10月
  • 2024年9月
  • 2024年8月
  • 2024年7月
  • 2024年6月
  • 2024年5月
  • 2024年4月
  • 2024年3月
  • 2024年2月
  • 2024年1月
  • 2023年12月
  • 2023年11月
  • 2023年10月
  • 2023年9月
  • 2023年8月
  • 2023年7月
  • 2023年6月
  • 2023年5月
  • 2023年4月
  • 2023年3月
  • 2023年2月
  • 2023年1月
  • 2022年12月
  • 2022年11月
  • 2022年10月
  • 2022年9月
  • 2022年8月
  • 2022年7月
  • 2022年6月
  • 2022年5月
  • 2022年4月
  • 2022年3月
  • 2022年2月
  • 2022年1月
  • 2021年12月
  • 2021年11月
  • 2021年10月
  • 2021年9月
  • 2021年8月
  • 2021年7月
  • 2021年6月
  • 2021年5月
  • 2021年4月
  • 2021年3月
  • 2021年2月
  • 2021年1月
  • 2020年12月
  • 2020年11月
  • 2020年10月
  • 2020年9月
  • 2020年8月
  • 2020年7月
  • 2020年6月
  • 2020年5月
  • 2020年4月
  • 2020年3月
  • 2020年2月
  • 2020年1月
  • 2019年12月
  • 2019年11月
  • 2019年10月
  • 2019年9月
  • 2019年8月
  • 2019年7月
  • 2019年6月
  • 2019年5月
  • 2019年4月
  • 2019年3月
  • 2019年2月
  • 2019年1月
  • 2018年12月
  • 2018年11月
  • 2018年10月
  • 2018年9月
  • 2018年8月
  • 2018年7月
  • 2018年6月
  • 2018年5月
  • 2018年4月
  • 2018年3月
  • 2018年2月

https://piyomarusoft.booth.pm/items/301502

メタ情報

  • ログイン
  • 投稿フィード
  • コメントフィード
  • WordPress.org

Forum Posts

  • 人気のトピック
  • 返信がないトピック

メタ情報

  • ログイン
  • 投稿フィード
  • コメントフィード
  • WordPress.org
Proudly powered by WordPress
Theme: Flint by Star Verte LLC
